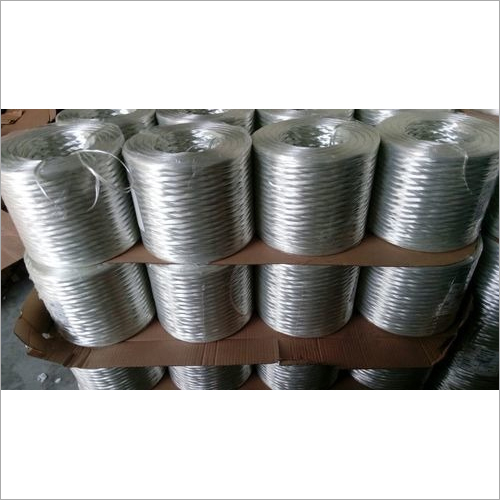

Our firm establishment in this field has enabled us to supply supreme grade Woven Roving. The offered products are manufactured by making use of advanced machines and tools in our vendors' infrastructure facility. These products are manufactured keeping in mind the parameters and norms laid by the industry. Owing to its lightweight and high strength nature, the Woven Roving is highly used for making and repairing boats, railroad carriages, storage tanks and architectural structures.
Features:
Product Characteristics
Technical Specifications:
Alkali content | <0.8% (for E-Glass) |
Alkali content | <12% (for C-Glass) |
Moisture content | 0.1% |
Coupling Agent | Silane |
LOI | 0.2% |
Compatible Resins | Polyester and vinylester |
Specification | Tex | Fiber diameter (m) | Count of cloth (root/cm) | Unit area mass (g/m2) | Breaking strength (N) | Texture | |||||
Warp yarn | Weft yarn | Warp yarn | Weft yarn | Warp yarn | Weft yarn | First class | Qualified product | Warp | Weft | Plain-Weave | |
EWR200 | 192 | 192 | 11 | 11 | 5.0 | 4.2 | 180±15 | 180±18 | 1100 | 800 | |
EWR400A | 576 | 576 | 11 | 11 | 3.6 | 3.2 | 395±32 | 395±40 | 2250 | 1950 | |
EWR600 | 1200 | 1200 | 17 | 17 | 2.6 | 2.5 | 600±30 | 600±40 | 3700 | 3200 | |
EWR800 | 2400 | 2400 | 24 | 24 | 1.8 | 1.8 | 800±40 | 800±50 | 4200 | 3700 | |
CWR400 | 480 | 500 | 13 | 13 | 4.0 | 3.8 | 385±30 | 385±35 | 2600 | 2000 | |
CWR600 | 1300 | 960 | 13 | 13 | 2.6 | 2.6 | 600±45 | 600±50 | 3500 | 3000 | |
CWR800 | 2200 | 1760 | 13 | 13 | 2.0 | 2.0 | 810±40 | 810±40 | 4000 | 3600 |
![]() |
